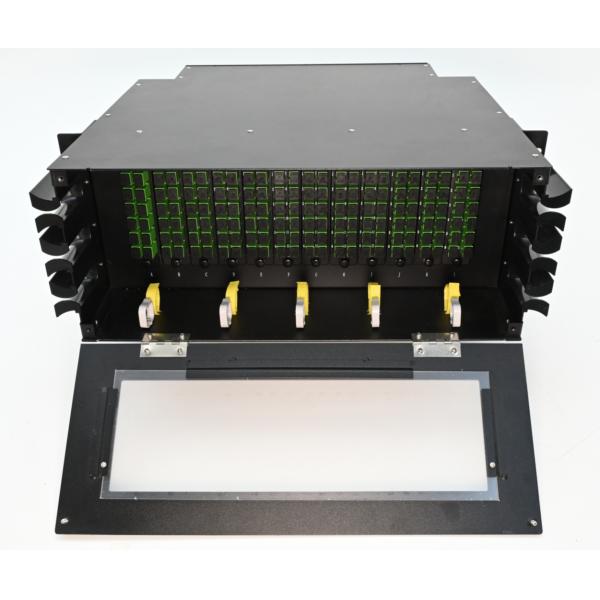

144C Modular ODF 19" Rack Mount Fiber Distribution Frame

Brand Name : Dawnergy

Model Number : 144C Modular ODF

Place of Origin : China

MOQ : 100

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 5-8 work days

Packaging Details : Carton/Pallet

Max. No. of Cores : FC/SC/ST/duplex LC

Module Slots Number : 12

Material : Cold-rolled steel, 1.2mm thickness

Installation Method : 19” rack mount

Splicing Tray : 12 cores tray

Contact Now

144C Modular ODF 19" Rack Mount Fiber Distribution Frame
Product Attributes
Attribute Value
Max. No. of Cores FC/SC/ST/duplex LC
Module Slots Number 12
Material Cold-rolled steel, 1.2mm thickness
Installation Method 19" rack mount
Splicing Tray 12 cores tray
Product Description
144C Modular ODF 19" Rack Mount Fiber Distribution Frame
144C Modular ODF 19" Rack Mount Fiber Distribution Frame
Overview

144Core modular optical fiber distribution frame is used where termination and connectivity of 144 fibers (high density) is required. The frame design is based on a 4U rack unit height. This 144C modular ODF is composed of 12pcs pre-loaded 12C splicing and patching unit that includes FC/SC/ST/duplex LC compatible adaptors, pigtails and 12 core splice trays.

Features
  • Modular design, sliding out type 12C fiber splicing and patching unit with rails for easy operation
  • Integrated design provides OSP cable fibers and pigtail splicing, patch-cord termination and storage
  • Provides maximum protection of optical components
  • Excellent mechanical performance
  • Reliable fiber routing and fixing design
  • Minimum fiber bending radius guaranteed
  • Good dust proof performance
Applications
Telecommunication Closets
Data Centers
Customer Premise
Central Offices
Hubs
Cabinets
Remote Terminals
Specifications
Parameters Specification
Max. No. of Cores 144
Adapter Type FC/SC/ST/duplex LC
Module Slots Number 12
Material Cold-rolled steel, 1.2mm thickness
Color Black or grey powder coating
Installation Method 19" rack mount
Splicing Tray 12 cores tray
Dimensions 482*420*175mm
Operating Temperature -20~+55℃
Relative humidity ≤85% (30℃)
Atmosphere pressure 70~106KPa
Insulation Resistance ≥2x10⁴MΩ/500V(DC)
Components
144C Modular ODF 19" Rack Mount Fiber Distribution Frame
Cable and Strength Member Clamp
144C Modular ODF 19" Rack Mount Fiber Distribution Frame
Side Organizer
144C Modular ODF 19" Rack Mount Fiber Distribution Frame
Splice and Adapters Module
Accessory
No. Item Unit Qty
1 Modular Optical Fiber Distribution Frame (ODF) Set 1
2 Rack mounting M6 clamp screws and nuts Set 4
3 Hose Clamp Piece 8
4 Splicing Protection Sleeve Piece 144
5 Cable Tie Piece 20
6 Protection Tube Piece 1
7 Velcro Piece 5
Ordering Information
Name Description
Modular Optical Fiber Distribution Frame (ODF) Black; Cold-rolled steel; 19-inch rack, 4U, sliding type; Max. 144 cores, 12pcs splice and SC type adapters module can be installed; SC type adapters and pigtails included

Product Tags:

19 inch rack mount ODF



modular fiber distribution frame



144C Optical Fiber Distribution Frame


Quality 144C Modular ODF 19" Rack Mount Fiber Distribution Frame for sale
